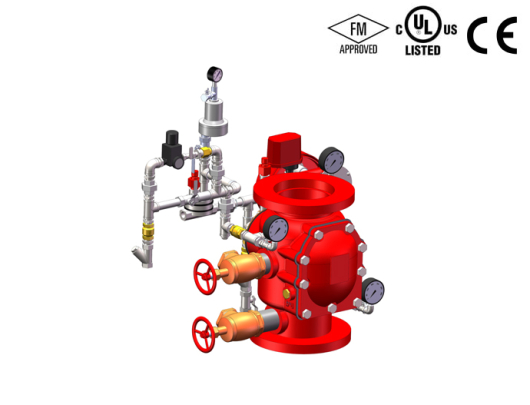

Dry Pipe Valves for use as an automatic means of controlling water flow to automatic dry-pipe sprinkler systems. Vertical orientation. Peroxide cured EPDM with Fabric Diaphragm. NFPA 13 Standard.
Latched Clapper Type. Air Supervisory Pressure Switches included.
Dry Pipe Valves for use as an automatic means of controlling water flow to automatic dry-pipe sprinkler systems. Vertical orientation. Peroxide cured EPDM with Fabric Diaphragm. NFPA 13 Standard.
Latched Clapper Type. Air Supervisory Pressure Switches included.
Rated Working Pressure 5 – 300 psi. CE: 16 bar
Available in Flange x Flange, Flange x Groove, or Groove x Groove End Configurations.
UL / ULC Listed to UL 260 Standard, FM Approved to FM 1020 / 1021 Standard. CE Certified.
Fusion Bonded Coating Interior and Exterior to AWWA C500 Standard.
Options include:
Dry Accelerator
Water Motor Alarm
Alarm Pressure Switch
Drain Connection Kit
